Application:
All vessels ð 20 m in length. Lights marked ¥ may also be used on inland waterways

Approvals (3 versions):
a) International according to IMO 1972, in Scan din avian countries too, in Germany through BSH, other countries in particular see list of approvals. Approved for inland waterways under ¥ D
b) US-Coastguard, China Classification Society. These lights may only be used on ships flying the flags of the USA or P.R. China
c) RINA. These lights may only be used on ships flying the flag of Italy (RINA also accept P 28s socket)

Min. visibilities:
3 n.m., masthead light 6 n.m. , maneuver 5 n.m.

Protection class: IP 56

Housing:
Polycarbonate, glass fiber reinforced,
other components of non-corrosive materials.
Housing self-ventilated. Nonmagnetic, seawater
resistant

Housing color: Mat black

Optics:
Easy to change, seawater resistant, special plastic Fresnel lens

Electric:
Conus inclusive 1.5 m special connection cable 2 x 1.5 mm², self-protective insulation, class II

Cable insert:
Special cable gland metric pressure screw M 24 x 1.5 with protection against buckling

Lamp:
Easy to change special tungsten bulb

Mounting:

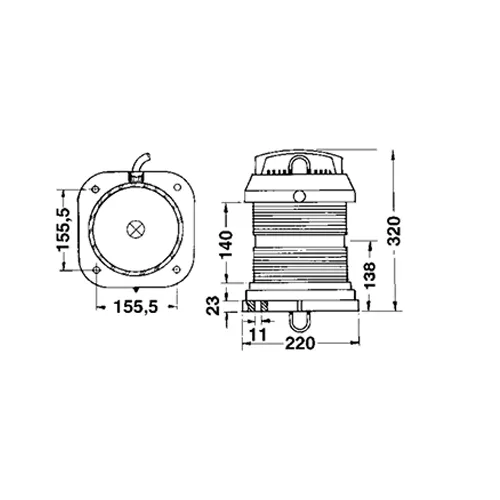

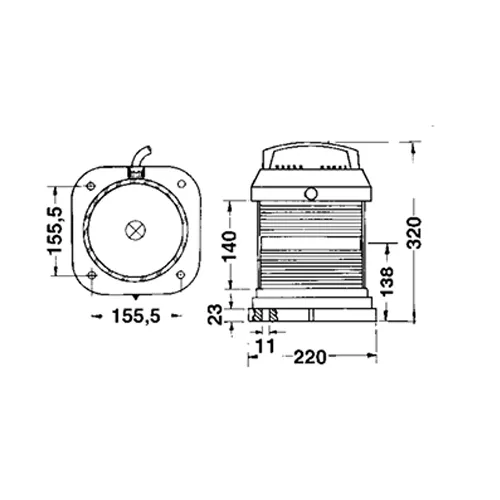

Base flange attachment, 4 screws (not included). All-round lights may also be hoisted. Additional mounting aids see drawing.
