Application: All vessels ð 20 m in length. Lights marked ¥ may also be used on inland waterways

Approvals (3 versions):
a) International according to IMO 1972, in Scan din avian countries too, in Germany through BSH, other countries in particular see list of approvals. Approved for inland waterways under ¥ D
b) US-Coastguard, China Classification Society. These lights may only be used on ships flying the flags of the USA or P.R. China
c) RINA. These lights may only be used on ships flying the flag of Italy (RINA also accept P 28s socket)

Min. visibilities: 3 n.m., masthead light 6 n.m.

Protection class: IP 56

Housing: Polycarbonate, glass fibre reinforced, other components of non-corrosive materials. Housing self-ventilated. Nonmagnetic, seawater resistant

Housing colour: Mat black

Optics: Easy to change, seawater resistant, special plastic Fresnel lenses

Electric: Main lighting (upper unit) and spare lighting (lower unit) each come with 1.5 m special connection cable 2 x 1.5 mm², self-protective insulation, class II

Cable insert: 2 special cable glands metric pressure screw M 24 x 1.5 with protection against buckling

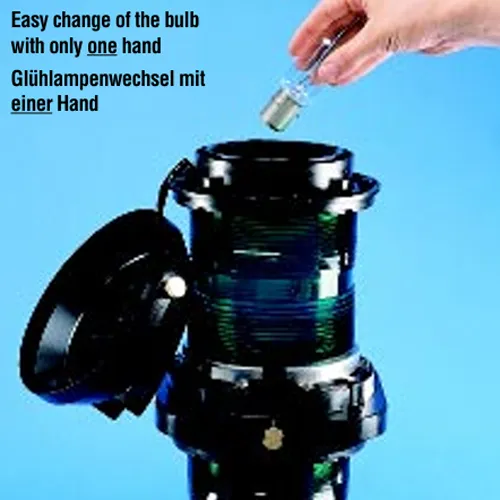

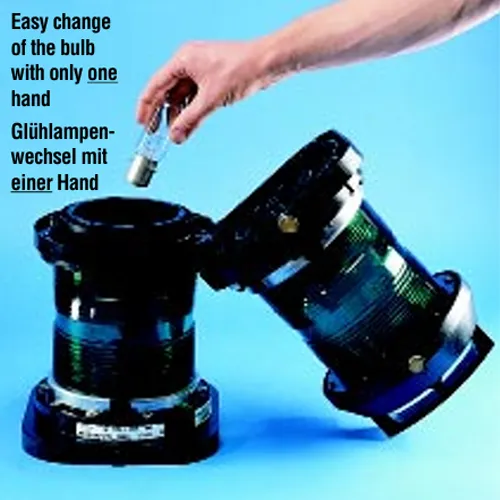

Lamps: Easy to change 2 tungsten bulbs

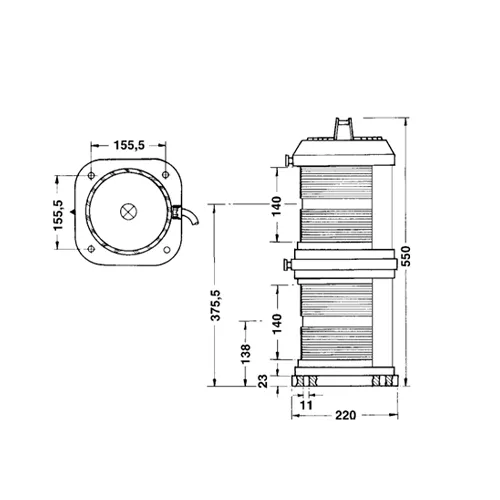

Mounting: Base flange attachment, 4 screws (not included). All-round lights may also be hoisted. Additional mounting aids see drawing
